Wall-mounted, single-output options for a small footprint and one vehicle at a time.
Discuss a small siteLOW-VOLTAGE DC CHARGING
DC chargers built around the electric motorcycle.
Start with a published charger range, then match the battery, vehicle interface and site power to your operating model.
CHARGER RANGE
Wall-mounted or floor-mounted, single or dual output.
The current product brochure lists seven low-voltage DC models from 3.2 to 40 kW. The right unit depends on battery limits, simultaneous charging demand and the power available at the site.
CHOOSE BY USE CASE
Match capacity to how vehicles actually stop.
Use these starting points to narrow the model range; the final electrical design is set for the battery and site.
Fleet depot

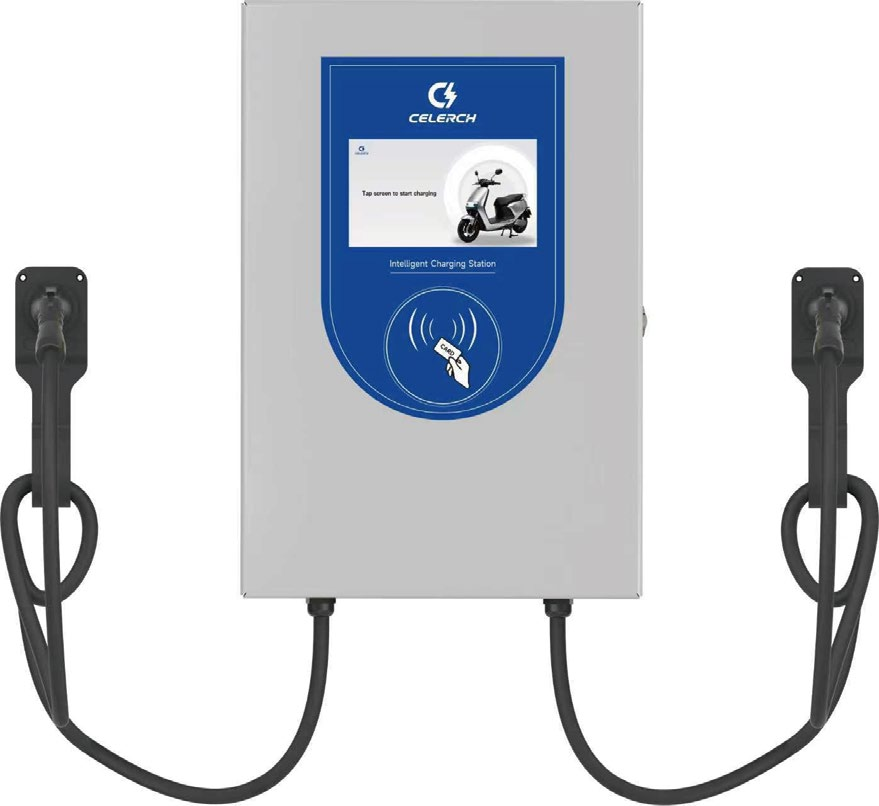

Dual-output models for shift changes or vehicles returning together.
Discuss a depotHigher-volume hub
Floor-mounted models for projects with greater concurrent charging needs.
Discuss a charging hubPRODUCT DATA
Compare the published DC models.
All figures below come from the CELERCH Product Brochure. Connector type, electrical supply and battery charging profile are part of model selection.
| Model | Power | Input | Output voltage | Max current | Gun | Connector | OCPP | Network | Install |
|---|---|---|---|---|---|---|---|---|---|
| CH-EBIKE-DC-001-3.2KW | 3.2 kW | AC380V +/-10% (L1+L2+L3+N+PE) | 30-100 VDC | 40 A DC | Single | TYPE 6 / REMA | OCPP 1.6J | 4G/WiFi | Wall mounting |
| CH-EBIKE-DC-002-6.4KW | 6.4 kW | AC380V +/-10% (L1+L2+L3+N+PE) | 30-100 VDC | 40 A x 2 | Dual | TYPE 6 / REMA | OCPP 1.6J | 4G/WiFi | Wall mounting |
| CH-EBIKE-DC-003-10KW | 10 kW | AC380V +/-10% (L1+L2+L3+N+PE) | 30-100 VDC | 100 A | Single | TYPE 6 / REMA | OCPP 1.6J | 4G/WiFi | Ground mounting |
| CH-EBIKE-DC-004-20KW | 20 kW | AC380V +/-10% (L1+L2+L3+N+PE) | 30-100 VDC | 100 A x 2 | Dual | TYPE 6 / REMA | OCPP 1.6J | 4G/WiFi | Ground mounting |
| CH-EBIKE-DC-005-20KW | 20 kW | AC380V +/-10% (L1+L2+L3+N+PE) | 30-100 VDC | 200 A | Single | TYPE 6 / REMA | OCPP 1.6J | 4G/WiFi | Ground mounting |
| CH-EBIKE-DC-006-40KW | 40 kW | AC380V +/-10% (L1+L2+L3+N+PE) | 30-100 VDC | 200 A x 2 | Dual | TYPE 6 / REMA | OCPP 1.6J | 4G/WiFi | Ground mounting |
| CH-EBIKE-DC-007-6KW | 6 kW | AC220V +/-10% (L+N+PE) | 30-120 VDC | 100 A DC | Single | TYPE 6 / REMA | OCPP 1.6J | 4G/WiFi | Wall mounting |
The brochure lists OCPP 1.6J, 4G/WiFi and IP54 for the DC range. Request the model-specific file for your shortlist.
PRODUCT BROCHURE
Take the complete matrix to your team.
The 16-page PDF includes individual DC model pages and AC charging options.
CELERCH Product BrochureDC and AC charger information
Download Product BrochureNEXT STEP
Tell us the battery and site constraints.
Share battery voltage and charge-current limits, expected vehicles per hour, site power and country. We can narrow the charger configuration from there.
